* 1/2.7" 2M CMOS sensor
* Ambarella A5 processor
* 8mm Megapixel Lens
* Strong compatibility, high performance
* 50km/h vehicle speed adjustable.
This camera integrates advanced technology in optics, electronics, white light illumination and ambient rejection to deliver consistent, reliable number plate capture in the most conditions, such as short distance, special for entrance/exit license plate capturing application. Suitable for the vehicle speed under 50km/h.
1.Latest ARM11 high performance DSP and 2.0megapixel high sensitivity CMOS sensor
2.1920x1080 resolution 25/30fps realtime full frame

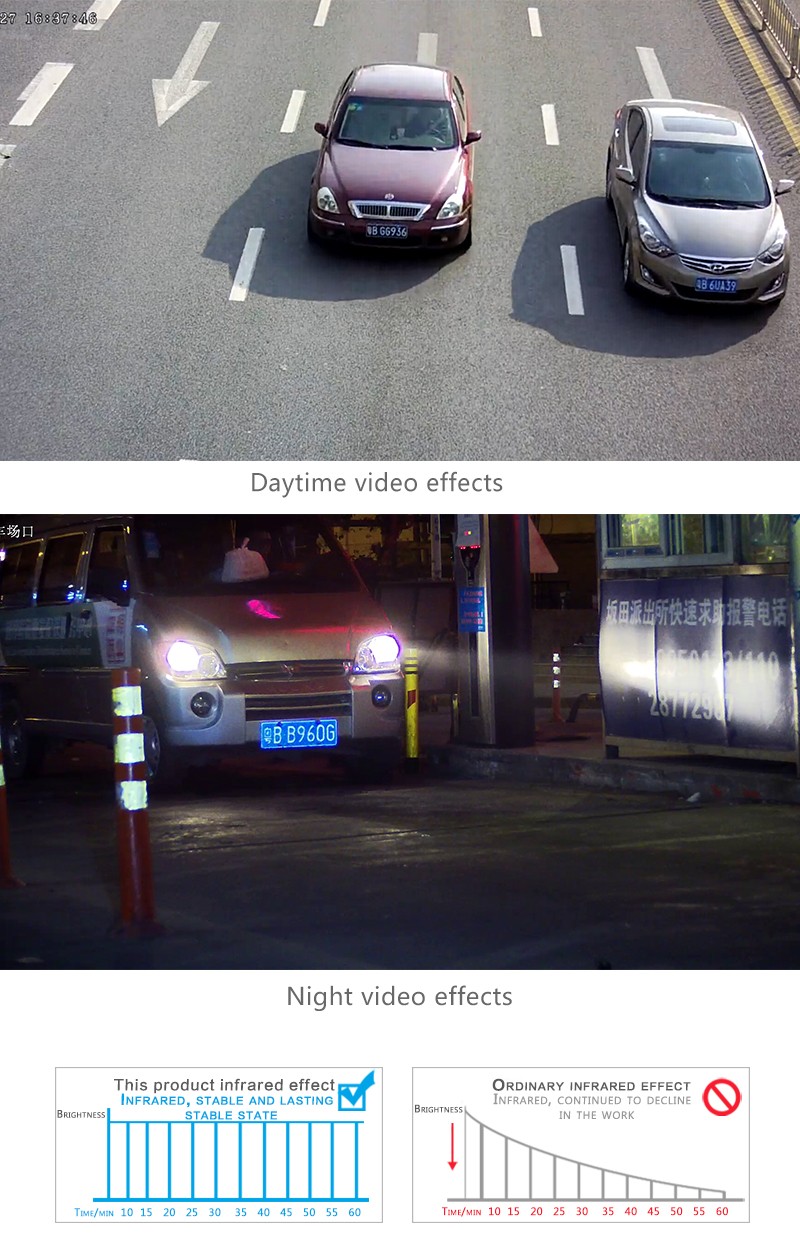

3.Embedded intelligent algorithm to make sure optimal effect of license plate number recognition both at day and night
4.Less 50km/h vehicle speed
5.Easy installation and calibration,use computer or NVR to monitor and record license plate
6.Automatic abnormal recovery function,automatic network connection after interruption.
7.Support TCP/IP,HTTP,TCP,RTSP,UDP,SMTP,FTP,NTP,UPNP etc…network protocol
8.Network interface,10Base-T/100Base-T Ethernet interface,PoE(802.3AF) optional
9.Using high quality warm yellow Dot-matrix array LEDs with stable and reliable property
10.Using 2.0megapixel HD 8mm Megapixel fixed Lens
Specification | |
Product Name | Megapixel LPR IP Camera |
Model | IPCX-CW20CLAIP200 |
Video | |
Image sensor | 1/2.7" 2M CMOS sensor |
Processor | Ambarella A5 processor |
Resolution | 1920*1080 |
Video output | Network and CVBS |
Compression | H.264 high profile |
FPS | 1920x1080/1-30fps |
1280*960/1-30fps | |
1280*720/1-30fps | |
Compressed code | 256K-12Mbps |
Dual streaming | Support |
3D DNR | Support |
Function | |
Network interface | RJ45 ethernet port,10/100M TCP/IP/UDP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP supported |
LPR model | Vehicle speed, environment brightness adjustable |
Common | |
Day/night | Auto switching (IR model) |
LED | White light LED array |
Lens | 8mm Megapixel fixed Lens |
Power supply | DC12V(±10%) |
Power dissipation | 14W |
Work temperature, humidity | -30~55,10%~90% RH |
| |
Waterproof | IP66 |
Camera Dimension | 250x150x120mm |
Camera Weight | 1300g |
Packing Weight | 1500g |
| |
Packing List:
1 x IP LPR Camera 8mm fixd Lens
1 x CD&Guarantee card&Screw&Desiccant
1 x Bracket
1 x 12v power supply
